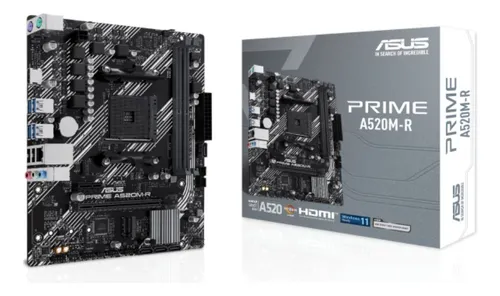

PLACA MAE (AMD) ASUS PRIME A520M-R DDR4 AM4
-
R$ 473,10
-
R$ 473,10
-
- 1x de R$ 498,00 sem juros
- 2x de R$ 249,00 sem juros
- 3x de R$ 166,00 sem juros
- 4x de R$ 133,94
- 5x de R$ 108,71
- 6x de R$ 91,90
- 7x de R$ 79,90
- 8x de R$ 70,91
- 9x de R$ 63,93
- 10x de R$ 58,35
Características:
- Marca: ASUS
- Modelo:PRIME A520M-R
CPU:
- AMD Socket AM4 for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors*
Chipset:
- AMD A520 Chipset
Memória
- 2 x DIMM slots, max. 64GB, DDR4 5100(OC)/ 4866(OC)/ 4666(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133, Un-buffered Memory*
- Dual channel memory architecture
* ECC memory (ECC mode) support varies by CPU.
Gráficos:
- 1 x HDMI™ port**
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
Processors
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop
- 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD A520 Chipset
- 1 x PCIe 3.0 x1 slot
Rede:
- 1 x Realtek 1Gb Ethernet
USB:
Rear USB (Total 6 ports)
- 4 x USB 5Gbps ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 6 ports)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Áudio:
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Portas I/O no painel Traseiro
- 4 x USB 5Gbps ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x HDMI™ port
- 1 x Realtek 1Gb Ethernet port
- 3 x Audio jacks
- 1 x PS/2 keyboard (purple) port
- 1 x PS/2 mouse (green) port
Storage Related
- 1 x M.2 slot (Key M)
- 4 x SATA 6Gb/s ports
USB
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (F_AUDIO)
- 1 x S/PDIF Out header
- 1 x Speaker header
- 1 x SPI TPM header (14-1pin)
- 1 x 10-1 pin System Panel header
Sistema Operacional:
- Windows® 11, Windows® 10 64-bit
Formato
- micro-ATX Form Factor 9.3 inch x 7.6 inch ( 23.6 cm x 19.3 cm )
Garantia:
1 ano de garantia junto ao fabricante)
